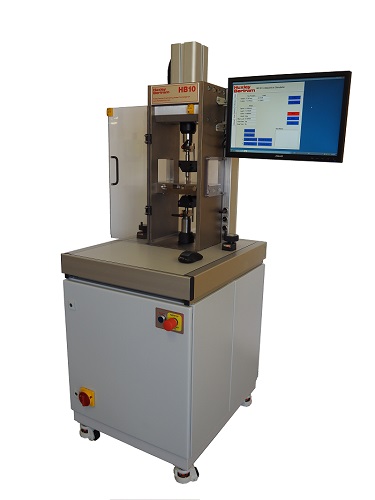

HB10 Research and Development Bench Top Press

Features

Servo-hydraulic double acting press
Integrated hydraulic pump
Simple operating software
Rigid steel core
Precision instrumentation load and position, upper and lower
Many instrumentation options
Optional automatic hoppers
Optional automatic Take-Off
Multi-layer capability
Convenient safety guards for ergonomic and safe operation
Quick tooling installation – pre-aligned punches and die
Accommodates all standard tooling types
Easy clean design with simple removable tool holders
Can be wheeled away for cleaning
Stainless steel and approved plastics for product contact parts
Low power consumption
Force and velocity controlled tests

Performance Data

Double ended rated force 50kN
Max rated punch speed 2.5 mm/s each actuator
Position resolution 1 micron
Force resolution <2N
